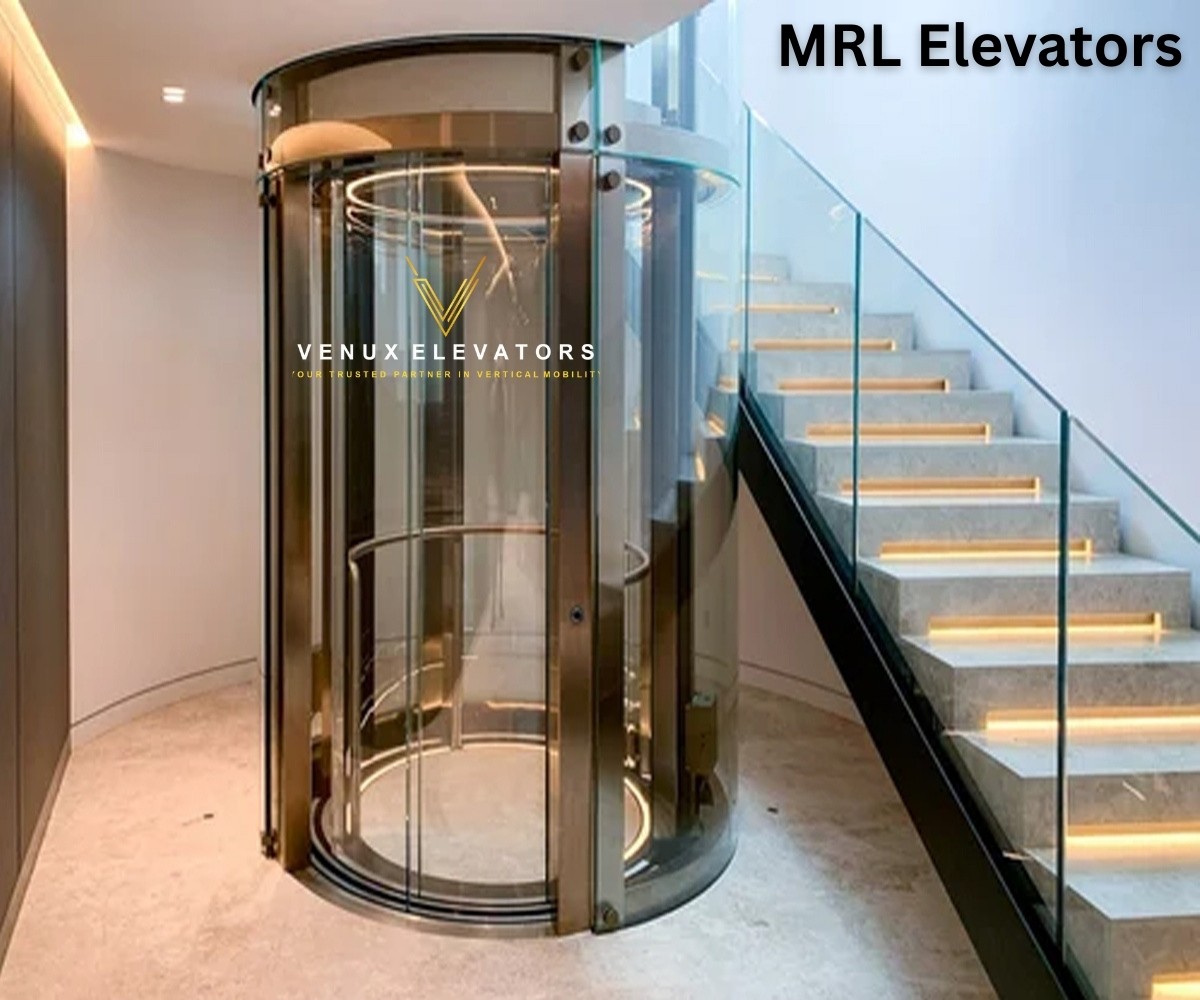

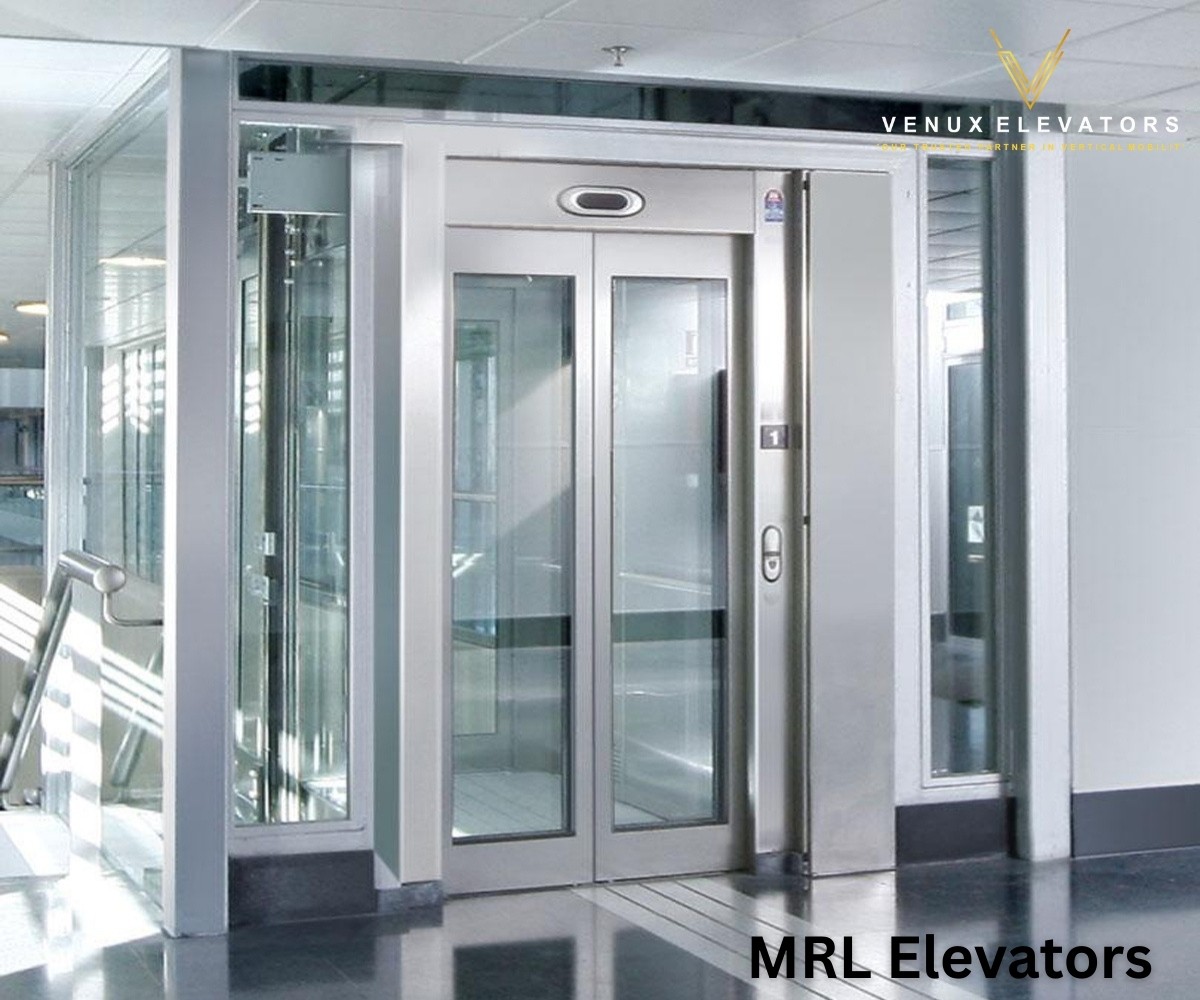

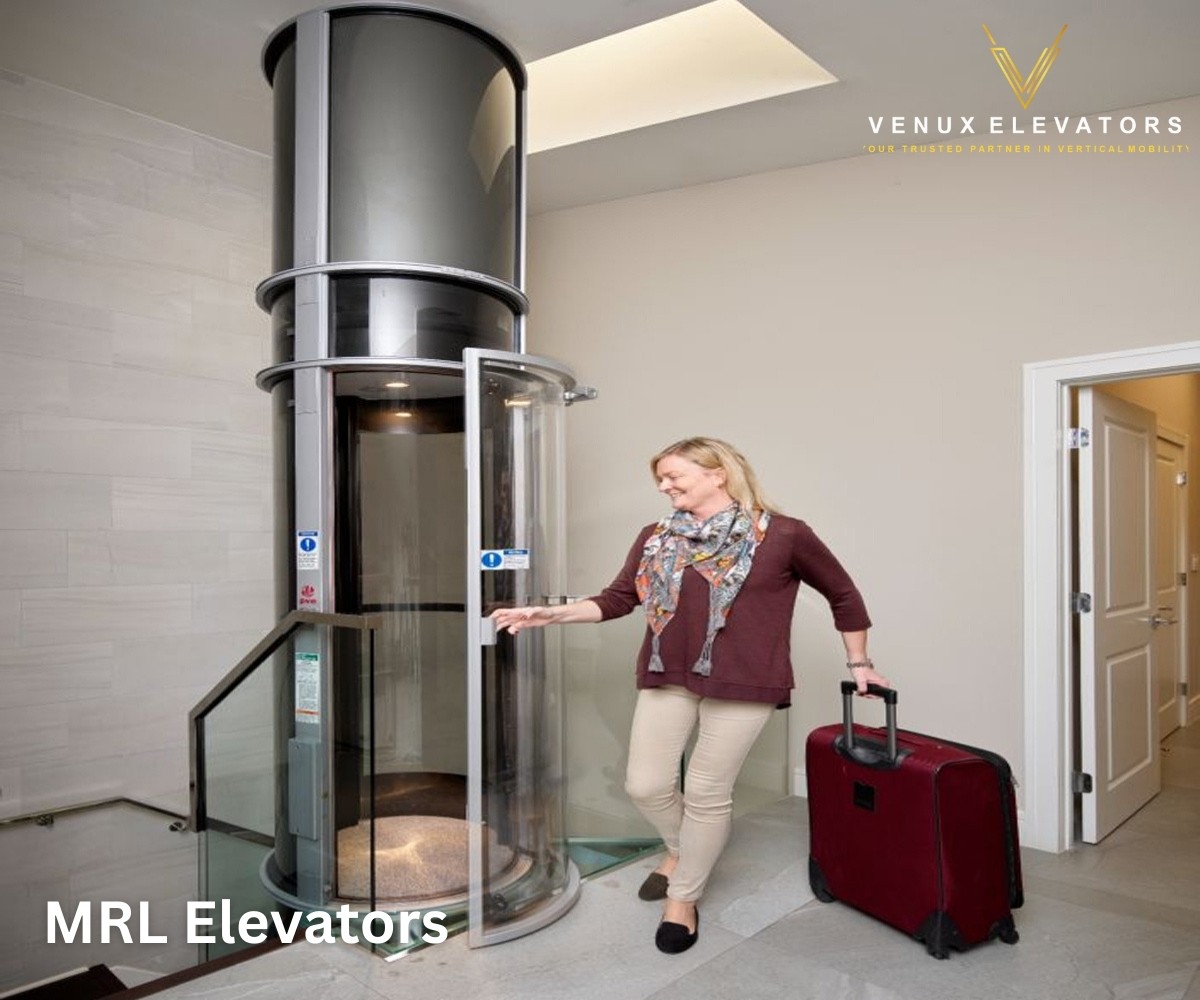

MRL Elevators
Venux Machine Room Less (MRL) elevators are designed with modern technology that eliminates the need for a separate machine room, making them highly space-efficient. Compact yet powerful, these lifts are perfect for residential complexes, commercial buildings, and offices where space utilization is a priority. With low energy consumption, smooth operation, and stylish design, MRL lifts are the smart choice for today’s architectural needs.
Key Features of MRL Elevator
No Machine Room Required – The motor and controller are placed inside the shaft, saving building space.
Space Efficient – Ideal for buildings with limited headroom and no extra room for equipment.
Energy Efficient – Uses gearless traction motor with VVVF drive, low power consumption.
Smooth & Silent Ride – Gearless technology ensures vibration-free and noise-free operation.
Aesthetic Flexibility – Can be customized with glass cabins, designer interiors, and modern controls.
Eco-Friendly – Requires less oil/lubrication compared to hydraulic systems.
Safety-Oriented – Equipped with ARD (Automatic Rescue Device), overload sensors, IR door safety, and fire-rated materials.
Low Maintenance – Fewer moving parts than conventional geared elevators.
High Efficiency in Mid-Rise Buildings – Best for residential apartments, offices, and hotels up to 20–25 floors.
Future Ready – Can integrate IoT monitoring, touchless controls, and energy regeneration.
Technical Specifications of MRL Elevator
Load Capacity
320 kg to 1600 kg (4 to 21 persons).
Speed
Standard: 1.0 m/s – 1.75 m/s
Premium/high-rise: up to 2.5 m/s.
Travel Height
Up to 75 meters (20–25 floors).
Power Requirement
3-phase, 380–415 V, 50 Hz.
Uses Permanent Magnet Synchronous Motor (PMSM) for energy savings.
Drive System
Gearless traction with VVVF drive.
Counterweight system for balanced operation.
Door Type
Automatic center-opening / telescopic doors.
Door width: 700–1100 mm depending on capacity.
Cabin Dimensions
Customizable as per load.
Example: 1100 × 1400 mm (8 persons / 630 kg).
Safety Features
Automatic Rescue Device (ARD).
Overload indicator & emergency alarm.
IR door sensors, door interlocks.
Fire alarm interface & ventilation fans.
Pit & Headroom
Pit depth: 1000–1500 mm.
Overhead height: 3500–4200 mm.
Less than conventional traction lifts.
Special Options
Regenerative drive (feeds power back to grid).
Touchless operation panel & IoT remote monitoring.
Luxury interiors with LCD/voice announcement.
Glass cabin option for panoramic effect.
