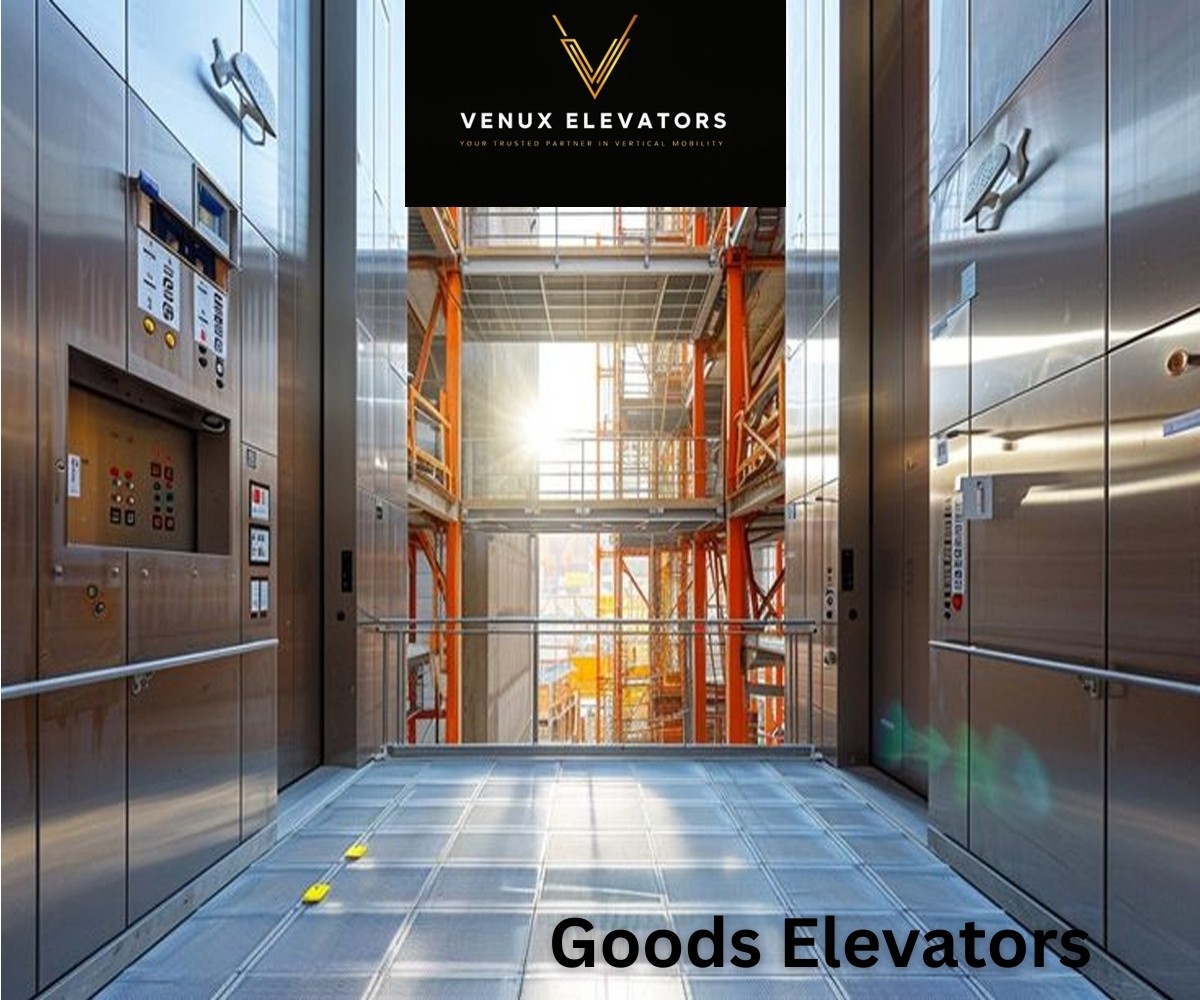

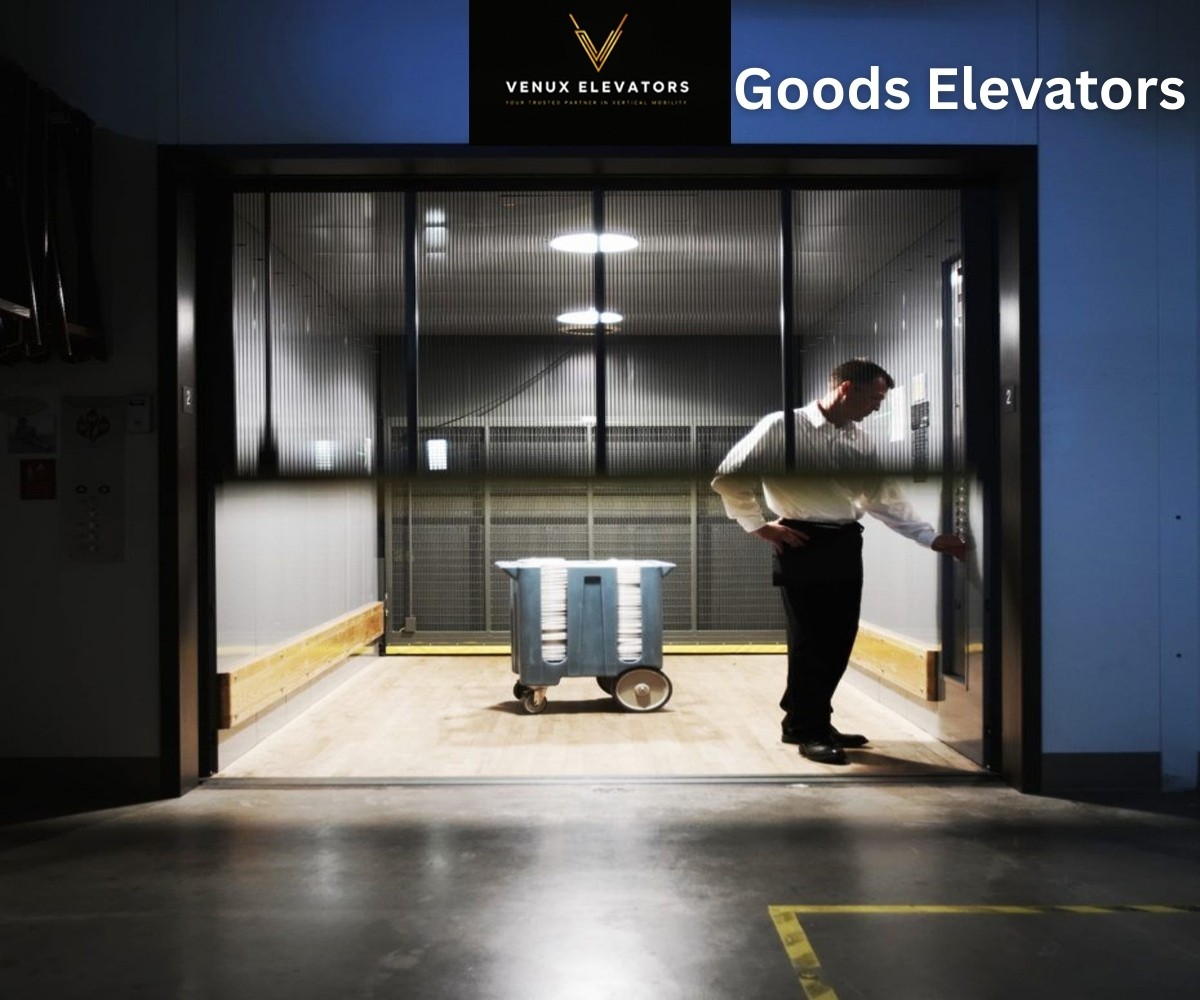

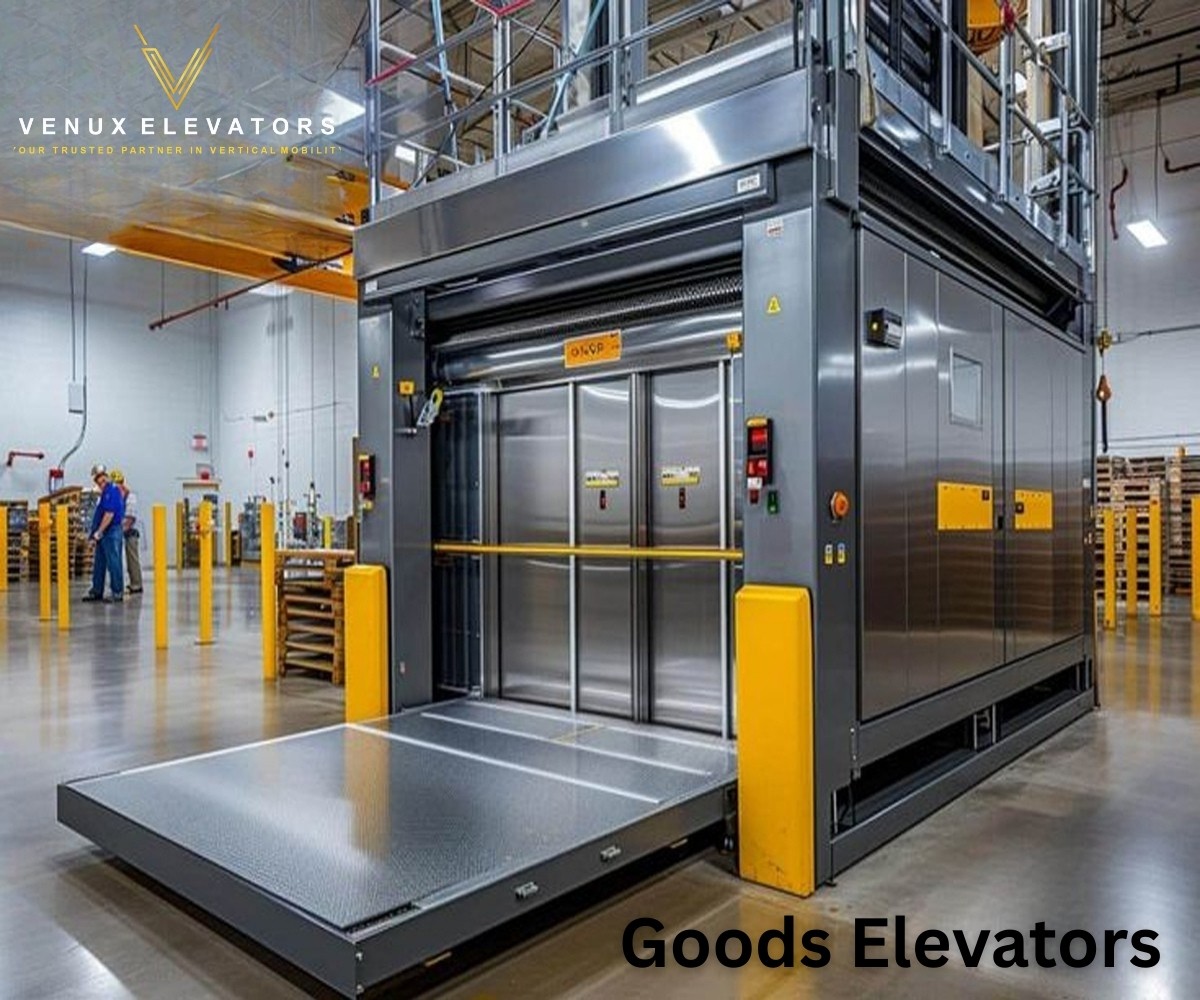

Goods Elevators
Venux goods elevators are designed for heavy-duty performance, ensuring safe and efficient transportation of materials across different floors. Built with robust engineering, high load capacity, and durable design, they are ideal for warehouses, factories, hotels, and commercial spaces. These lifts provide reliable vertical mobility, reduce manual effort, and enhance productivity in everyday operations.
Technical Specifications of Goods Elevator
Load Capacity
Ranges from 500 kg to 5000 kg (special models up to 10,000 kg).
Speed
Standard: 0.25 m/s – 0.5 m/s
Slow speed ensures safe loading/unloading.
Travel Height
Up to 25–30 meters (about 6–10 floors).
Power Requirement
3-phase, 380–415 V, 50 Hz.
Heavy-duty motor with VVVF drive.
Drive System
Traction type (geared/gearless).
Hydraulic type also used for low-rise buildings.
Door Type
Manual swing, collapsible gates, vertical bi-parting doors, or automatic shutters (as per industrial need).
Cabin Dimensions
Customizable – e.g., 1500 × 2000 mm (1000 kg),
3000 × 4000 mm (5000 kg).
Safety Features
Overload protection system.
Emergency stop switch.
Interlocked doors.
Buffer springs, safety gear, IR sensors.
Pit & Headroom
Pit depth: 1500 mm approx.
Headroom: 4500 mm approx. (varies with design).
Special Options
Flameproof models for hazardous industries.
Double entry (through car) option for logistics.
Heavy-duty flooring for forklifts & trolleys.
Railing or protective lining inside cabin.
